pi-flows

Use pi for the work you want to keep out of your parent session: repo scouting, parallel investigation, implementation plus review, and large-task decomposition.

pi-flows adds a flow tool that runs separate, disposable pi subprocesses and returns compact findings to the parent session. Instead of asking one long-running chat to explore, edit, review, remember every file it opened, and stay within budget, you can send bounded work to children running purpose-built agents and keep the parent focused on the decision.

When it helps you

Use pi-flows when the next step would otherwise make your parent pi session noisy, expensive, or hard to trust:

Your situation	What you ask pi	What pi-flows gives back
You need to understand a code path before touching it.	"Have a read-only agent find the billing routes."	A compact, cited recon report from an agent that cannot mutate the repo or run shell commands.
You want one bounded review of a PR or branch.	"Review HEAD against main and issue #25 exactly once."	Two overwatch runs in named standards and spec roles, typed file coverage, and a harness-derived CLEAN, FINDINGS, or PARTIAL outcome.
You want an implementation checked before you accept it.	"Add /health with a test, and accept it only after npm test passes."	A bounded generator-evaluator loop where a builder, critic, and optional command gate must pass.
You have a broad research task.	"Document how auth works across login, refresh, and sessions."	Decompose, fan out, synthesize, and optionally verify the merged answer.
Several independent writers need to land one verified result.	"Fix frontend and backend in isolated worktrees, integrate them, then run tests."	Separate worker branches plus a durable, reviewed integration branch.
You care what the delegation cost.	"Run this with a $0.25 cap and save a trace."	Cumulative cost/token ceilings plus OpenInference-shaped JSONL traces and /flows report.

The full situations table — parallel inspection, gated migrations, debate, dossier, and monitor — is in Patterns, along with why a harness beats a folder of agent prompts.

Do not use pi-flows as the default path for small tasks. Simple answers, obvious shell commands, tiny edits, and quick single-file lookups are usually cheaper and clearer in the parent session.

Treat each mode as an activation threshold, not a feature to match by keyword. Do not auto-use flows for simple or saturated work: if the parent can already meet the acceptance criteria reliably, extra agents add cost and latency without quality headroom. Escalate only when isolation, independent evidence, adversarial reasoning, deterministic gates, or bounded multi-step control materially changes correctness. The flow reference spells out the threshold for each advanced mode.

What it looks like

You talk to pi in plain English — it reads the flow tool and writes the call for you. Load the extension, then just ask:

Have a read-only agent find the API routes for billing.

pi delegates that to recon, which runs in its own subprocess and hands back just the findings. You never hand-write JSON — pi fills in the agent and the mode. (The call here is {"agent":"recon","task":"Find the API routes for billing","why":"user asked for a delegated read-only scout"}; the flow reference shows the exact JSON interface for when you want to verify it or take manual control.)

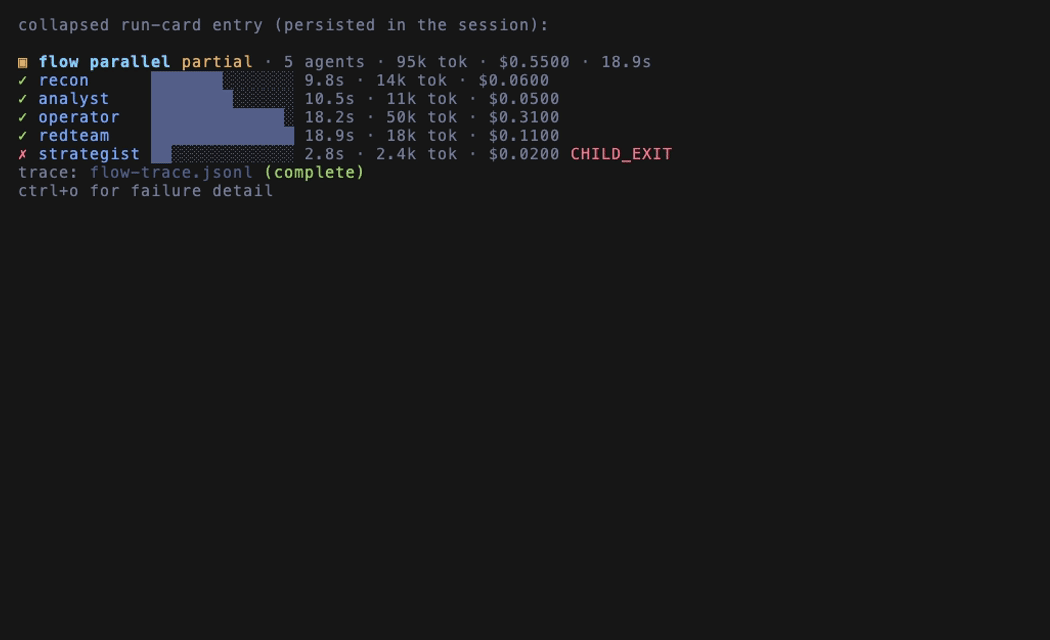

While children run you get a live tool row, and after the flow settles a durable card keeps the outcome, cost rollup, and configured ceilings in the transcript:

For common shapes, pi can choose a named workflow preset — scout, map-codebase, or the one-shot, typed code-review — instead of assembling raw mode parameters. And when you ask for a verified result, pi reaches for a stronger mode on its own:

Add a /health endpoint that returns 200 and a JSON status, with a test — accept it only after `npm test` passes.

pi runs this as an evaluate loop: the operator builds the change, a separate redteam critic judges the result, and npm test must exit 0, revising until both pass or it hits maxIterations.

→ Quickstart

Install

Prerequisites: Node.js >=24, npm >=11, and the pi CLI >=0.82.0 on your PATH (it ships in @earendil-works/pi-coding-agent: npm i -g @earendil-works/pi-coding-agent).

# From npm (recommended) — the published release
pi install npm:pi-flows

# Add -l to install into the current project only (.pi/settings.json)
pi install -l npm:pi-flows

# Or track the latest main straight from GitHub, no clone required
pi install git:github.com/Thulr/pi-flows

Reload pi with /reload (or restart it), then verify — /flows version is a command, and the second line is plain English that pi turns into a flow call:

/flows version
list the available flow agents

Success looks like all nine bundled agents in the flow list output — recon, strategist, overwatch, operator, analyst, redteam, controller, commander, and debrief. If pi isn't found, see Troubleshooting → pi: command not found.

To hack on pi-flows or try unreleased main, work from a checkout: git clone https://github.com/Thulr/pi-flows && cd pi-flows && npm ci, then load the local extension with pi -e ./extensions/pi-flows/index.ts (or install your working copy as a project-local package with pi install -l ..). Smoke-test with the extension commands /flows help and /flows status (no model call needed), then — with a provider configured — ask pi to Use flow with {"list":true} or {"showConfig":true}. Details in the package reference; see Development for the check loop.

What it adds

• The flow tool: fifteen delegation modes behind one interface, from single through monitor, plus machine-checked delegation contracts and validated return envelopes.
• The /flows command and live TUI monitoring: a live tool row, the F8 fleet panel, /flows inspect, and a durable flow card — every configured cost/token ceiling is disclosed with its authority before work starts.
• Nine bundled agents in agents/ and three workflow presets in presets/.
• Your own agents and presets, no code required — one markdown file each, user- or project-scoped, trust-gated and shadowed with visible diagnostics. See Custom agents.

Modes at a glance

Exactly one mode per call. {"list": true} and {"showConfig": true} answer without spawning a child; every spawning call also requires "why" — one sentence naming the reason delegation beats direct execution.

Mode	What it runs
Presets	scout, map-codebase, code-review — intent-level templates expanded before ordinary mode validation.
Single / parallel / chain	One agent; capped independent fan-out; a fixed pipeline fed by sanitized {previous} handoffs.
Evaluate	Generator-evaluator loop with an optional deterministic checkCommand gate and critic panel.
Vote	The same task across independent voters, merged by an optional aggregator.
Route	A classifier picks one candidate agent — or falls back instead of forcing a guess.
Orchestrate	Decompose → parallel workers → synthesis, with an optional verifier.
Graph	A bounded static DAG run wave by wave with {node.id} handoffs.
Loop	Repeat a body agent until LOOP: DONE, a judge's VERDICT: PASS, or the iteration cap.
Search	Bounded beam search: generate candidates, score 0..100, keep the beam, debrief the winner.
Workflow	Gated, resumable phases with persisted state and single-use approval receipts.
Worktree	Isolated writer worktrees merged onto a durable, verified integration branch.
Debate	Independent advocates, bounded rebuttal, separate adjudication.
Dossier	Per-source evidence extraction synthesized without smoothing conflicts away.
Monitor	A bounded deterministic probe whose typed trigger hands one reactor the event.

Any mode composes with flow budgets and tracing (maxCostUsd, maxTokens, maxGeneratedTokens, traceFile) and human checkpoints and Reflexion.

Safety model

Project-local agents and presets are repo-controlled prompts. Interactive sessions ask before using them; headless (non-UI) runs fail closed unless you explicitly pass confirmProjectAgents:false after reviewing the files. Read-only agents (recon, analyst) ship without a shell, so their boundary is enforced by the toolset, not by prompt instructions alone. Roles that need shell-based inspection without write capability use bash-ro — bash under a read-only allowlist enforced inside the child (and refused as BASH_READONLY_UNENFORCEABLE when it cannot be enforced), which is how the code-review preset runs its two reviewers concurrently in one checkout.

Returned content is redacted by default (secret-shaped strings, home paths), and every handoff that crosses from one child to another is capped, stripped of invisible/bidi characters, and scanned for injected instructions — handoffPolicy selects warn, quarantine, or fail, and modeHandoffPolicy can impose a stricter non-downgradable minimum. See Handoff injection policy and Privacy & telemetry.

Delegation is bounded on count, concurrency, time, and nesting depth, and on spend: maxCostUsd / maxTokens / maxGeneratedTokens cap the whole flow, with every configured ceiling disclosed before work starts. At 80% of a ceiling that stops live runs (cost or generated tokens, plus a contract's total tokens - a flow's maxTokens is a spawn gate only), live children are steered to wrap up and emit a partial return envelope; a ceiling crossed before the steer could reach the child is a hard stop (BUDGET_EXCEEDED). Concurrent write-capable agents may not share one cwd (SHARED_WRITE_CWD) unless explicitly allowed.

Human checkpoints add an explicit approval point to any mode: checkpoint.before:"spawn" asks before any child runs, "finalize" before the final result returns. Headless runs fail closed.

Documentation

The docs follow the Diátaxis framework:

• Tutorials — Quickstart: install, load, and run your first delegated task.
• How-to guides — Custom agents · Troubleshooting · Release runbook · Examples cookbook
• Reference — Flow reference: every mode, parameter, and structured error. Package reference: what ships and how to install it.
• Explanation — Patterns · Privacy & telemetry

Contributor surfaces: Contributing · Agent instructions · Domain glossary · Changelog

Development

npm ci
npm run check

See Contributing for the individual checks, the commit conventions, and PR evidence expectations.
